American style suspension

128

25+ years production experience
Implementing IATF 16949-2016
Implementing ISO 9001-2015
Quality testing by an independent lab
Warranty: 18 months since shipping date
Sales volume (sets): 50,000+
95%+ self-produced parts
Welding by automatic CNC robots/lines
Quality claim rate: under 0.1%
on-time delivery

American Type Suspension Series：

-GW13 Type Suspension Series

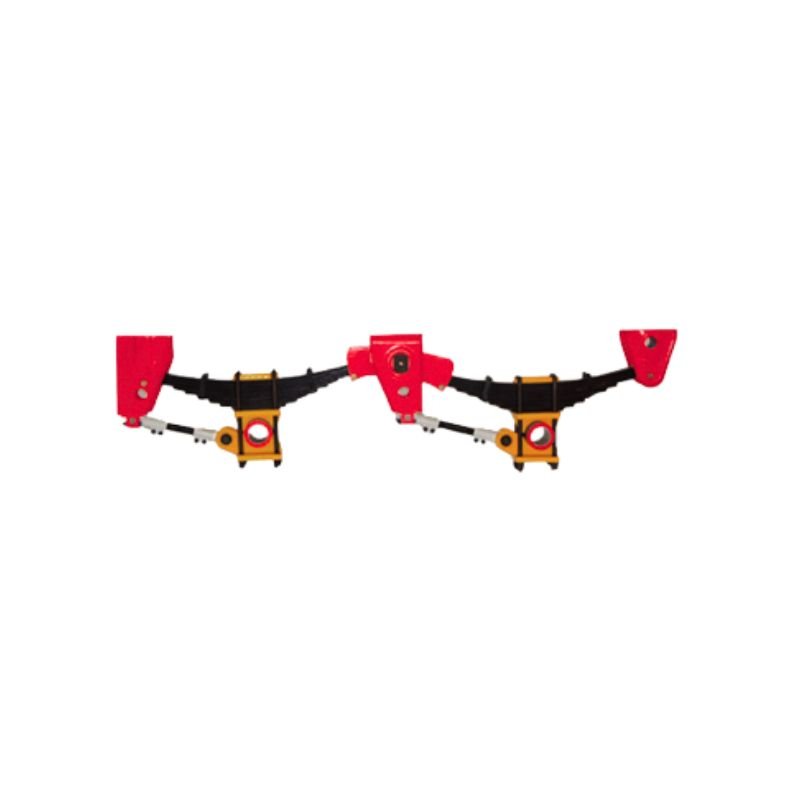

GW13.01 Tandem (2-axle) Suspensions
Model	Height of towing plate (mm)	A1 (mm)	A2 (mm)	H (mm)	Axle Loading (kg)
GW13.01.2001	1180	441	433	183	13,000 * 2
GW13.01.2002	1220	481	473	223	13,000 * 2
GW13.01.2003	1250	511	503	253	13,000 * 2
GW13.01.2004	1180	422	414	164	13,000 * 2
GW13.01.2005	1220	462	454	204	13,000 * 2
GW13.01.2006	1250	492	484	234	13,000 * 2

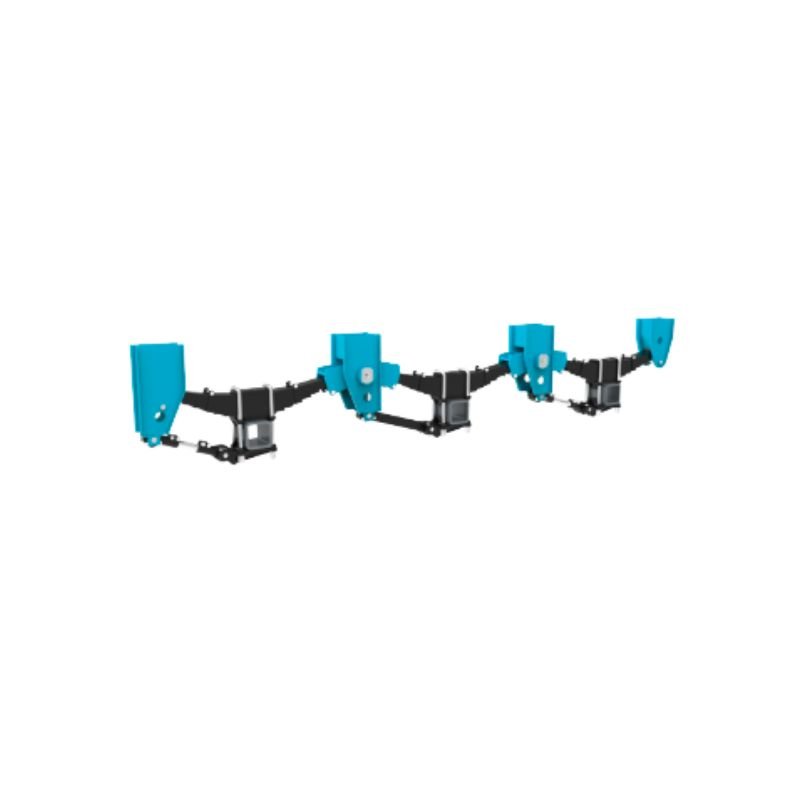

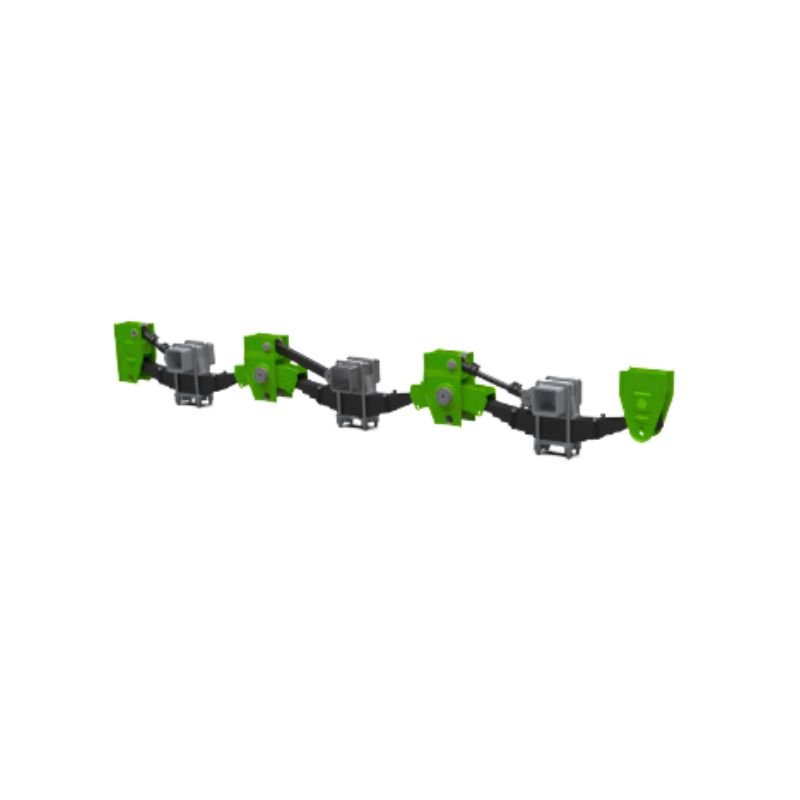

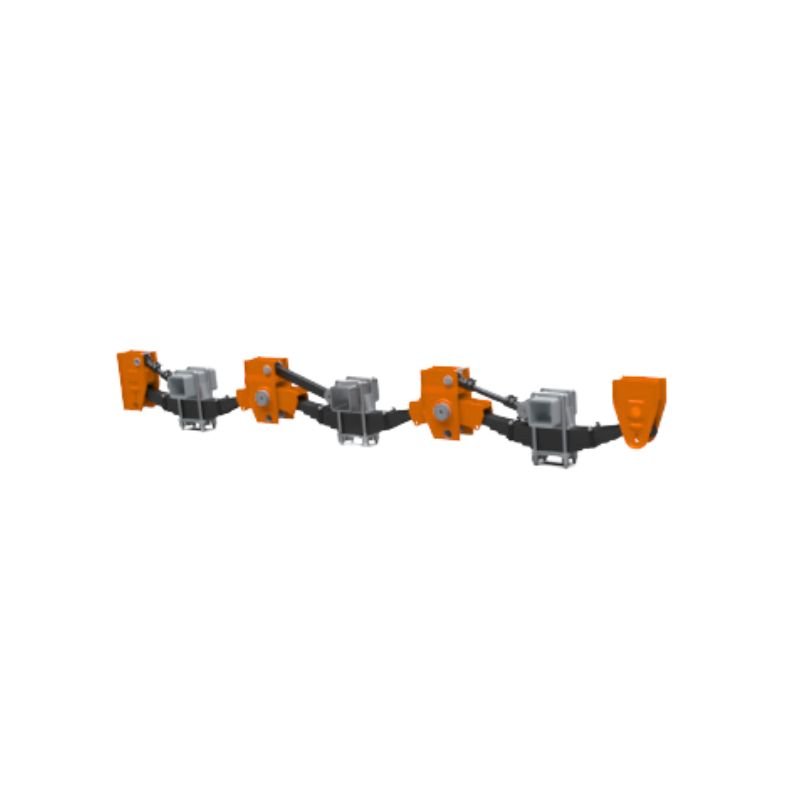

GW13.02 Tri (3-axle) Suspensions
Model	Height of towing plate (mm)	A1 (mm)	A2 (mm)	A3 (mm)	H (mm)	Axle Loading (kg)
GW13.02.2001	1180	457	448	435	185	13,000 * 3
GW13.02.2002	1220	497	488	475	225	13,000 * 3
GW13.02.2003	1250	527	518	505	255	13,000 * 3
GW13.02.2004	1180	438	429	416	166	13,000 * 3
GW13.02.2005	1220	478	469	456	206	13,000 * 3
GW13.02.2006	1250	508	499	486	236	13,000 * 3

Note:

(1) Demension “A1, A2, A3”: unladen

(2) Suitable for round/square axles

(3) Suggested leaf spring: 90×16×7 pcs

FAQ

The American suspesnion could be customized?

We could do based on required needs.

The leaf springs of the suspension could be changed??

Yes, the specification of leaf springs in the suspension could be changed based on technical required.

How long is the delivery time?

The delivery time is in 20 days based on approved exact technical data.

Advantage of GuoWo suspension:

Company Award

ABOUT US

Qingdao GuoWo Autoparts.,Ltd is a company that specialized in chasis parts such as leaf springs, suspension, air tanks etc for truck and trailers. We started our business in 2005 with the product of leaf springs, With years of development, now we have become a professional factory integrating R&D, sales for both Chinese domestic and overseas, production and sourcing. Currently, we have one headquarter in Qingdao and 8 branch factory ,including leaf springs & fastener&air tanks&suspension parts , nylon tube.

GuoWo products has extended its market to the USA, France,Spain, Japan, Thailand, Dubai, Saudi Arabia, Russia, Belarus， Canada, Australia, South America…more than 50 countries. We have supplied products to over 200+ happy clients.
