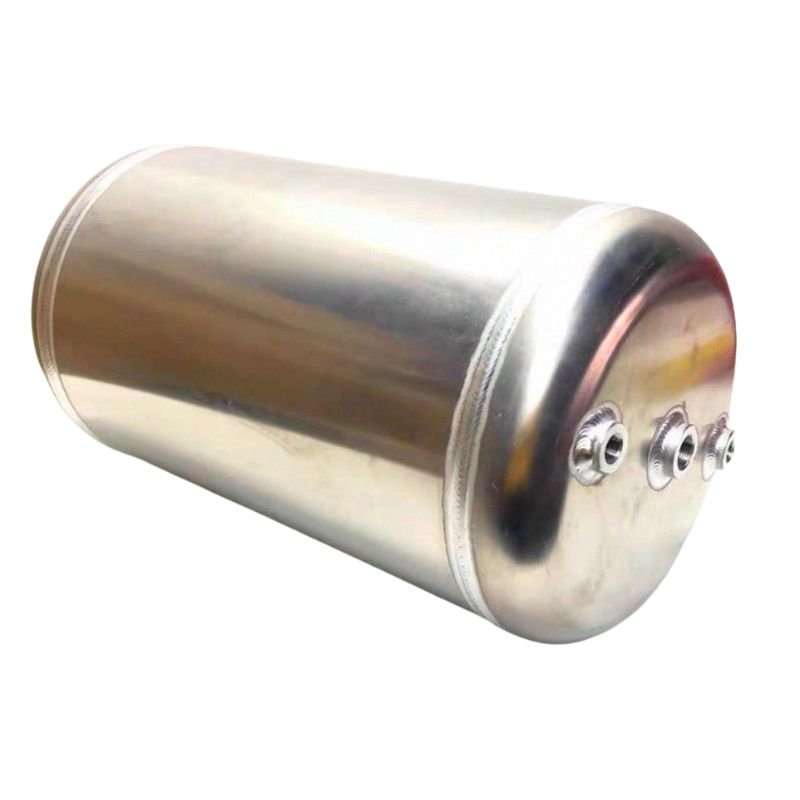

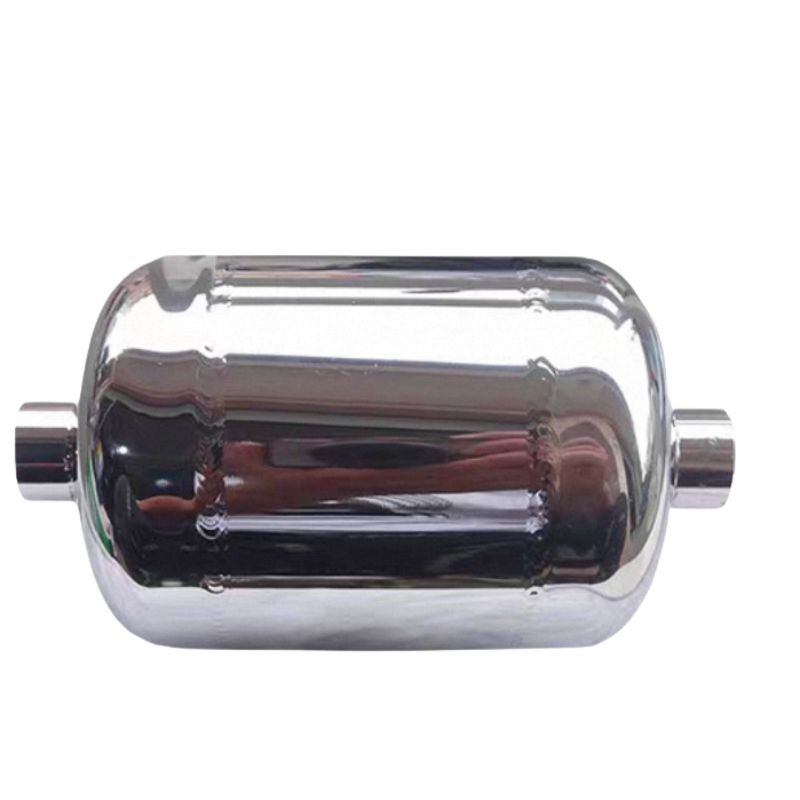

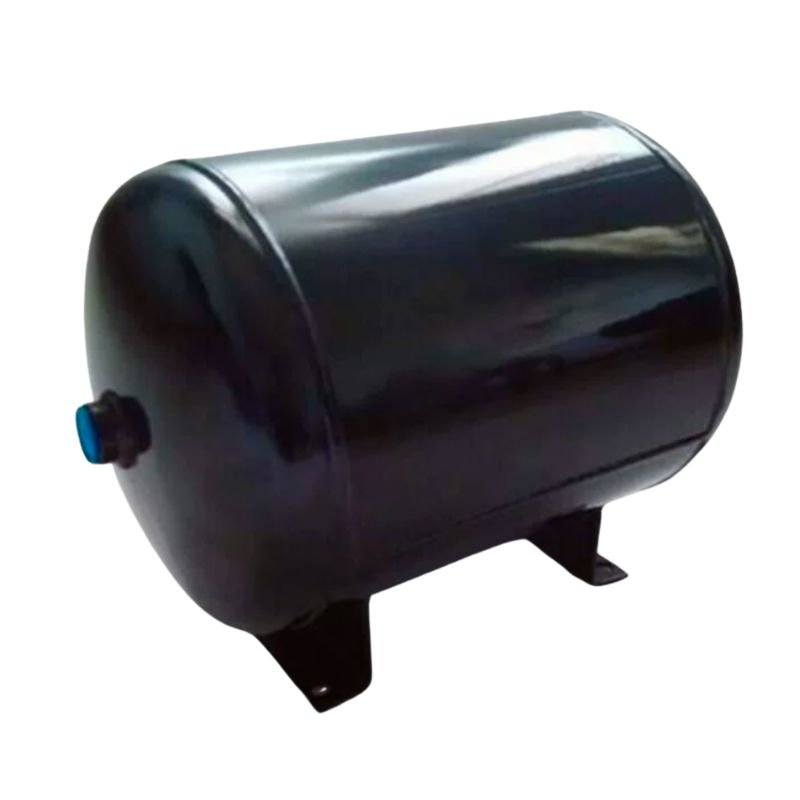

Air tank
Air tanks are crucial components of pneumatic systems for trailers and trucks, Designed to endure high-pressure environments, air tanks ensure a consistent and stable supply of compressed air.
Product Range: From 5 to 120 liters Other air tank sizes and models available on request.
Temperature range: -50 ° C to +100 ° C
Thread connections: According to customer requirements.
Inside and outside powder coating
Reliable air tank supplier in China
An air tank, or compressed air receiver, serves as a critical component within truck and trailer pneumatic braking system. It functions as a storage vessel for compressed air, ensuring a reliable supply for brake actuation. Constructed from steel or aluminum to withstand high operating pressures, it is typically mounted at the rear of the chassis. To ensure operational integrity and prevent safety hazards, routine maintenance and inspection are essential. Tank capacity and configuration vary according to the specific vehicle application and manufacturer specifications.
| PRODUCT LIST | |||
|---|---|---|---|
| Part No. | Volume | Dia.(mm) | L(mm) |
| GWAT000501 | 5 | 156 | 338 |
| GWAT000502 | 5 | 206 | 200 |
| GWAT000801 | 8 | 195 | 320 |
| GWAT001001 | 10 | 206 | 350 |
| GWAT001501 | 15 | 206 | 510 |
| GWAT002001 | 20 | 206 | 670 |
| GWAT002002 | 20 | 246 | 485 |
| GWAT002003 | 20 | 276 | 395 |
| GWAT002501 | 25 | 248 | 593 |
| GWAT003001 | 30 | 246 | 700 |
| GWAT003002 | 30 | 276 | 585 |
| GWAT003701 | 37 | 276 | 700 |
| GWAT004001 | 40 | 246 | 900 |
| GWAT004002 | 40 | 276 | 740 |
| GWAT004003 | 40 | 310 | 600 |
| GWAT004801 | 48 | 310 | 630 |
| GWAT005601 | 56 | 285 | 920 |
| GWAT006001 | 60 | 246 | 1330 |
| GWAT006002 | 60 | 276 | 1090 |
| GWAT006003 | 60 | 310 | 875 |
| GWAT006004 | 60 | 396 | 560 |
| GWAT008001 | 80 | 310 | 1100 |
| GWAT008002 | 80 | 396 | 730 |
| GWAT010001 | 100 | 396 | 910 |
| GWAT012001 | 120 | 396 | 1050 |

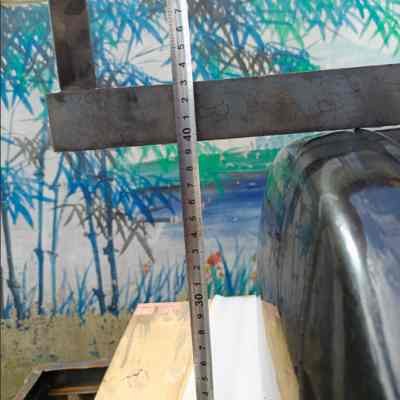

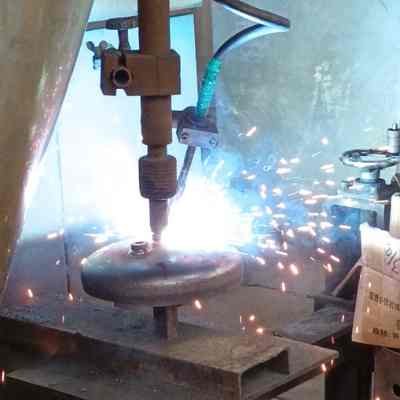

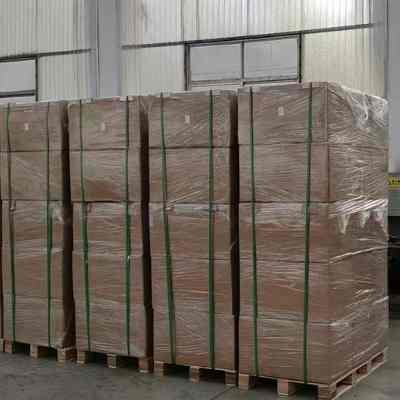

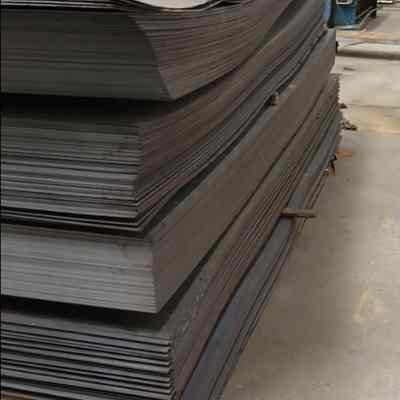

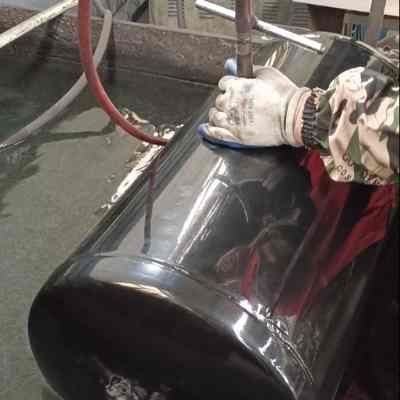

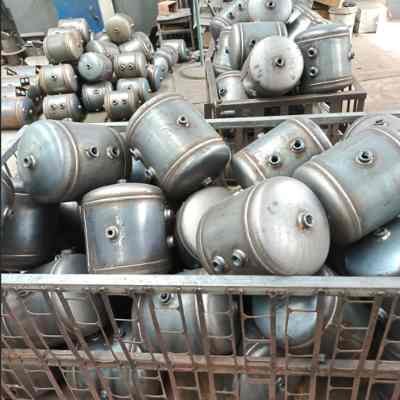

Air tank production process
FAQ
We could do the length ,diameter, surface etc based on required needs.
The air tank thickness is based on the required working pressure .
The delivery time is in 20 days based on approved exact technical data.
Advantage of GuoWo air tank:
- Advantage:
- 1. Reliable material quality.
- 2.Robust wedling with automatic welding.
- 3.Precise Dimensional Tolerance.
- 4.Strict quality and testing requirement for pressure control.
